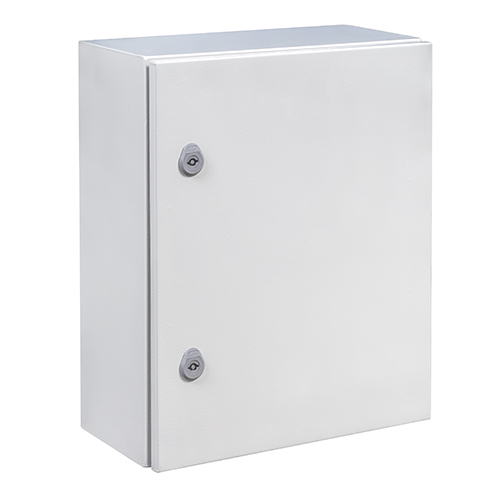

IDE MSB505030G Mild Steel Enclosure Cold Rolled Steel 500W 500H 300D RAL7035 Light Grey IP66

Product Code: MSB505030G

  • Wall-mount cabinet with IP66 protection
  • Supports 1000 VAC, 1500 VDC
  • Cold rolled steel construction
  • Operates in -25 to 60°C range
  • Complies with IEC & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A123
No. of Locks
2

Dimensions & Physical Data

Depth
300mm
Height
500mm
Width
500mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
