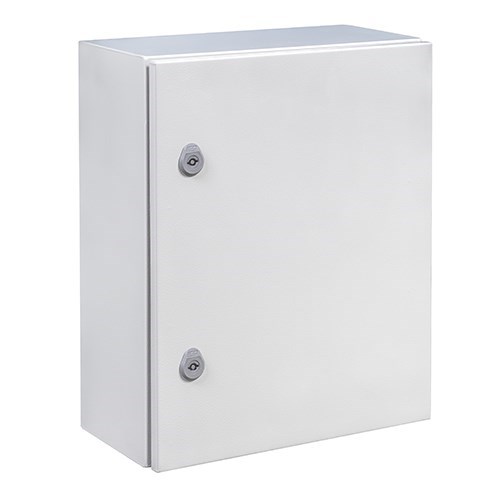

IDE MSB504020G Mild Steel Enclosure Cold Rolled Steel 400W 500H 200D RAL7035 Light Grey IP66

Product Code: MSB504020G

  • IP66 protection against dust and water
  • Cold rolled steel for durability
  • Reversible single/double door design
  • Rated impact resistance: IK10
  • Suitable for industrial environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A111
No. of Locks
2

Dimensions & Physical Data

Depth
200mm
Height
500mm
Width
400mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
