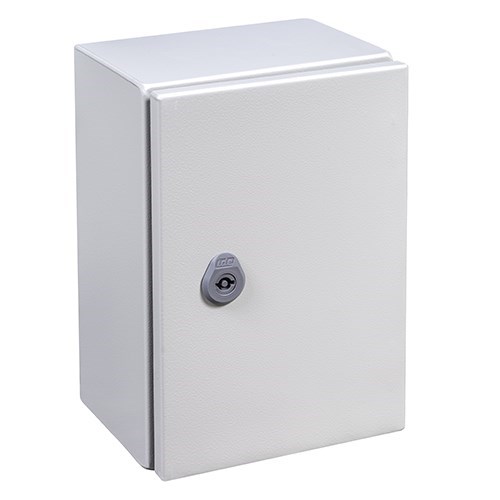

IDE MSB404025G Mild Steel Enclosure Cold Rolled Steel 400W 400H 250D RAL7035 Light Grey IP66

Product Code: MSB404025G

  • IP66-rated for dust and water protection
  • Cold rolled steel construction
  • Reversible single/double door design
  • Supports up to 225 kg cabinet load
  • UV-protected, textured polyester finish
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A96
No. of Locks
1

Dimensions & Physical Data

Depth
250mm
Height
400mm
Width
400mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
