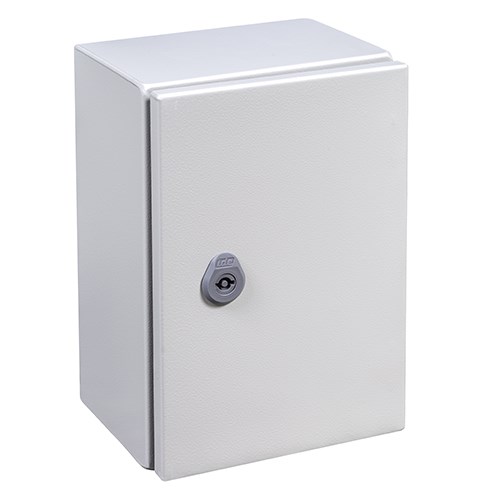

IDE MSB404015G Mild Steel Enclosure Cold Rolled Steel 400W 400H 150D RAL7035 Light Grey IP66

Product Code: MSB404015G

  • Wall-mounting cabinet, IP66 protection
  • Cold rolled steel, light grey RAL 7035
  • Rated for 1000 VAC/1500 VDC use
  • Reversible single/double door with lock
  • Max load: Cabinet 225 kg, Door 25 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A92
No. of Locks
1

Dimensions & Physical Data

Depth
150mm
Height
400mm
Width
400mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.
