Product Code: MSB304020G

IP66 protection for dust and water resistance
Cold Rolled Steel construction for durability
Surface mount with reversible door options
High load capacity: Cabinet 175 kg, Door 25 kg
UV-protected textured polyester paint finish

Specifications

General

Product Type

Enclosure

Brand

IDE

Series

MSB

Electrical

Rated Operational Voltage (Ue)

1000V AC / 1500V DC

Mechanical

Colour

RAL 7035 grey

Material

Cold-rolled steel EN10130+A85

No. of Locks

Dimensions & Physical Data

Depth

200mm

Height

300mm

Width

400mm

Environmental

Operating Temperature

-25°C / +60°C

IP Rating

IP66

Safety, Standards & Compliance

Standards and Approvals

Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

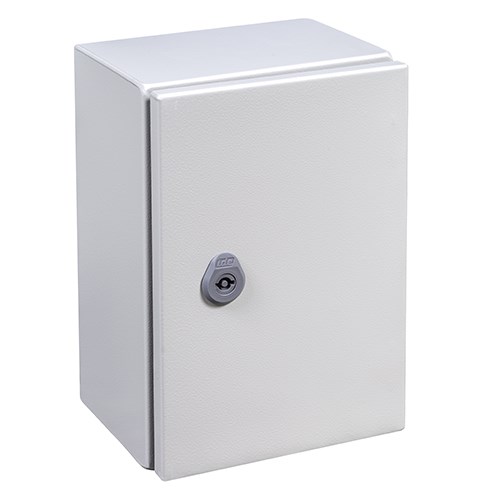

IDE MSB304020G Mild Steel Enclosure Cold Rolled Steel 400W 300H 200D RAL7035 Light Grey IP66
