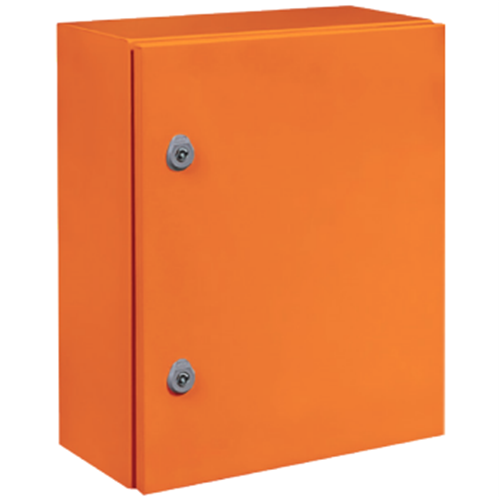

IDE MSB303020A Mild Steel Enclosure Cold Rolled Steel 300W 300H 200D RAL2008 Orange IP66

Product Code: MSB303020A

  • IP66 protection against dust and water
  • Cold rolled steel for durability
  • Rated for 1000 VAC, 1500 VDC operation
  • Compact size: 300x300x200 mm
  • Complies with IEC & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 2008 orange
Material
Cold-rolled steel EN10130+A81
No. of Locks
1

Dimensions & Physical Data

Depth
200mm
Height
300mm
Width
300mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
