Product Code: MSB141030DDG

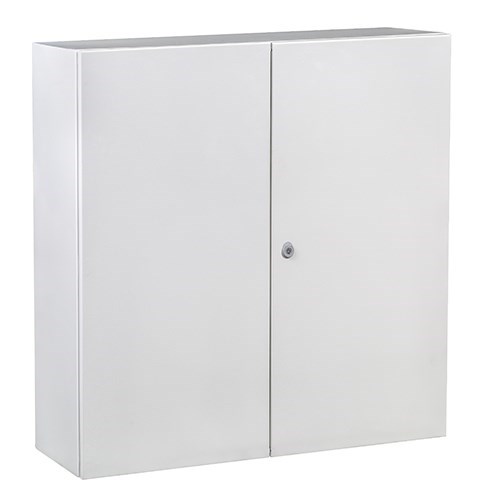

Wall-mount cabinet with IP55 protection
Made from cold rolled steel, light grey RAL 7035
Double reversible door with 3-point lock
Rated for 1000 VAC/1500 VDC, IK10 impact resistance
Suitable for industrial environments

Specifications

General

Product Type

Enclosure

Brand

IDE

Series

MSB

Electrical

Rated Operational Voltage (Ue)

1000V AC / 1500V DC

Mechanical

Colour

RAL 7035 grey

Material

Cold-rolled steel EN10130+A62

No. of Locks

Dimensions & Physical Data

Depth

300mm

Height

1400mm

Width

1000mm

Environmental

Operating Temperature

-25°C / +60°C

IP Rating

IP55

Safety, Standards & Compliance

Standards and Approvals

Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.

IDE MSB141030DDG Mild Steel Enclosure Cold Rolled Steel 1000W 1400H 300D RAL7035 Light Grey IP55

Product Code: MSB141030DDG
