Product Code: MSB126040G

IP66 rated for dust and water protection
Made from cold rolled steel with UV protection
Supports up to 390 kg load capacity
Versatile single/double reversible door
Meets IEC, UL standards for safety and quality

Specifications

General

Product Type

Enclosure

Brand

IDE

Series

MSB

Electrical

Rated Operational Voltage (Ue)

1000V AC / 1500V DC

Mechanical

Colour

RAL 7035 grey

Material

Cold-rolled steel EN10130+A52

No. of Locks

Dimensions & Physical Data

Depth

400mm

Height

1200mm

Width

600mm

Environmental

Operating Temperature

-25°C / +60°C

IP Rating

IP66

Safety, Standards & Compliance

Standards and Approvals

Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

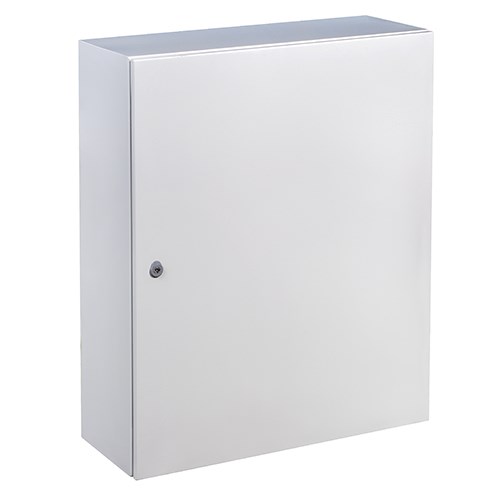

IDE MSB126040G Mild Steel Enclosure Cold Rolled Steel 600W 1200H 400D RAL7035 Light Grey IP66

Product Code: MSB126040G
