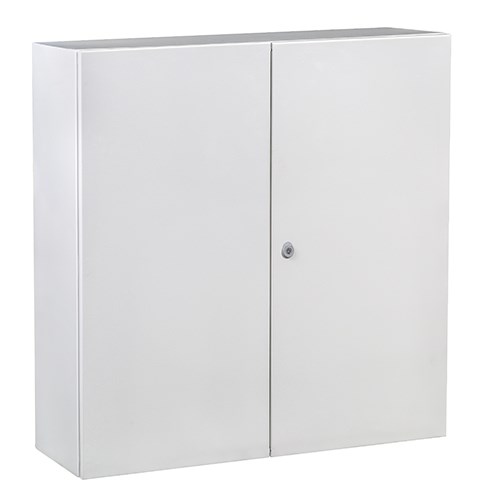

IDE MSB121230DDG Mild Steel Enclosure Cold Rolled Steel 1200W 1200H 300D RAL7035 Light Grey IP55

Product Code: MSB121230DDG

  • IP55 protection for dust and splash resistance
  • Cold rolled steel with UV-protected finish
  • Double reversible door with 3-point lock
  • Suitable for industrial environments
  • Rated impact resistance: IK10
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A43
No. of Locks
3

Dimensions & Physical Data

Depth
300mm
Height
1200mm
Width
1200mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.

Documents

IPD Product Catalogue V17
