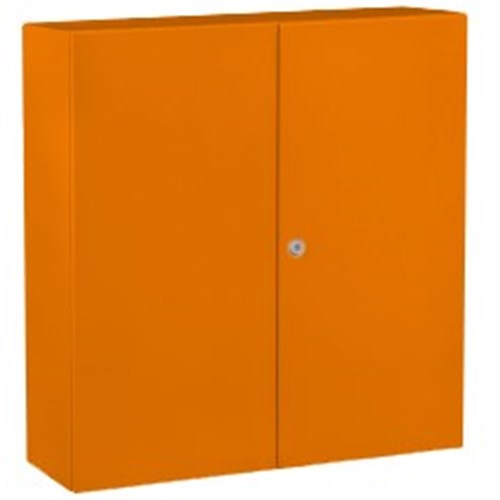

IDE MSB121040DDA Mild Steel Enclosure Cold Rolled Steel 1000W 1200H 400D RAL2008 Orange IP55

Product Code: MSB121040DDA

  • Wall-mounting cabinet with IP55 protection
  • Supports 1000 VAC, 1500 VDC operations
  • Made from durable cold rolled steel
  • Features a double reversible door design
  • Compliance: IEC 62208, IEC 61439-1, UL 508A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Industrial Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 2008 orange
Material
Cold-rolled steel EN10130+A35
No. of Locks
3

Dimensions & Physical Data

Depth
400mm
Height
1200mm
Width
1000mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.

Documents

IPD Product Catalogue V17
