Product Code: MSB108025G

IP66 for robust dust and water protection
Cold rolled steel for enhanced durability
Supports up to 390 kg total load capacity
UV-protected textured polyester paint finish
Reversible single/double door with secure lock

Specifications

General

Product Type

Metal Enclosure

Brand

IDE

Series

MSB

Electrical

Rated Operational Voltage (Ue)

1000V AC / 1500V DC

Mechanical

Colour

RAL 7035 grey

Material

Cold-rolled steel EN10130+A25

No. of Locks

Dimensions & Physical Data

Depth

250mm

Height

1000mm

Width

800mm

Environmental

Operating Temperature

-25°C / +60°C

IP Rating

IP66

Safety, Standards & Compliance

Standards and Approvals

Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

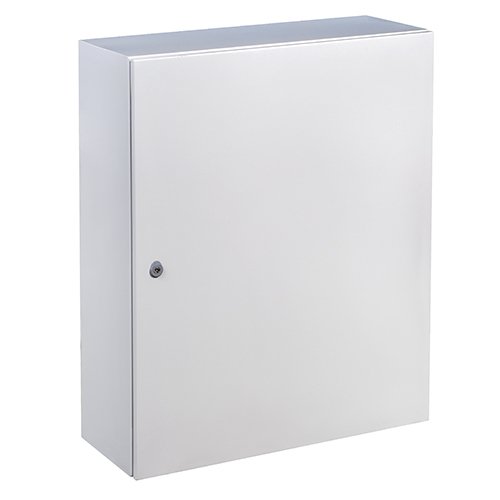

IDE MSB108025G Mild Steel Enclosure Cold Rolled Steel 800W 1000H 250D RAL7035 Light Grey IP66

Product Code: MSB108025G
