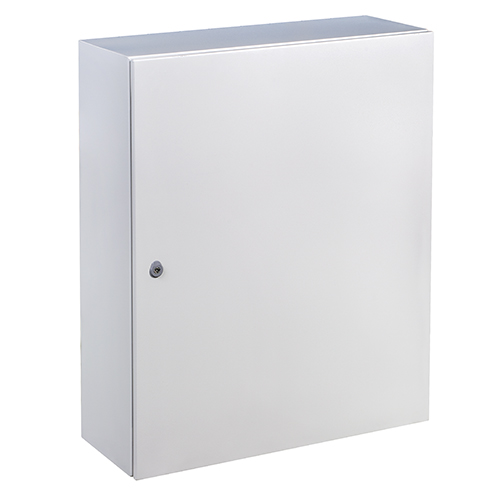

IDE MSB106025G Mild Steel Enclosure Cold Rolled Steel 600W 1000H 250D RAL7035 Light Grey IP66

Product Code: MSB106025G

  • Wall-mount cabinet with IP66 protection
  • Supports 1000 VAC, 1500 VDC operational voltage
  • Made from durable cold rolled steel
  • Reversible single/double door design
  • Conforms to IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 7035 grey
Material
Cold-rolled steel EN10130+A17
No. of Locks
3

Dimensions & Physical Data

Depth
250mm
Height
1000mm
Weight
40.1kg
Width
600mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP66

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

Documents

IPD Product Catalogue V17
