Product Code: MSB101030G

IP66 protection for dust and water resistance
Cold rolled steel construction for durability
Rated for 1000 VAC/1500 VDC operational voltage
UV-protected, textured polyester paint finish
Supports max load of 390 kg with reversible door

Specifications

General

Product Type

Enclosure

Brand

IDE

Series

MSB

Electrical

Rated Operational Voltage (Ue)

1000V AC / 1500V DC

Mechanical

Colour

RAL 7035 grey

Material

Cold-rolled steel EN10130+A4

No. of Locks

Dimensions & Physical Data

Depth 300mm	Height 1000mm	Weight 65.7kg
Width 1000mm

Environmental

Operating Temperature

-25°C / +60°C

IP Rating

IP66

Safety, Standards & Compliance

Standards and Approvals

Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.VDE certificate available for single-door cabinets.

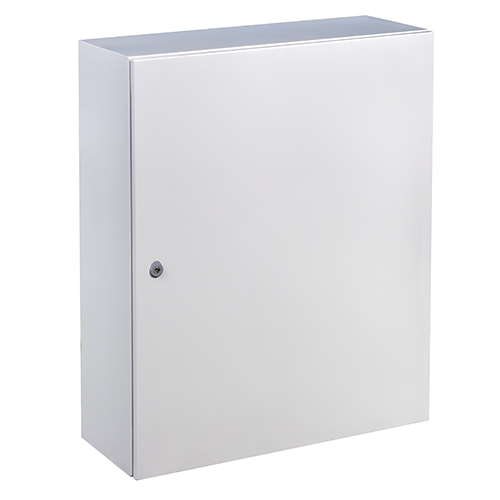

IDE MSB101030G Mild Steel Enclosure Cold Rolled Steel 1000W 1000H 300D RAL7035 Light Grey IP66

Product Code: MSB101030G
