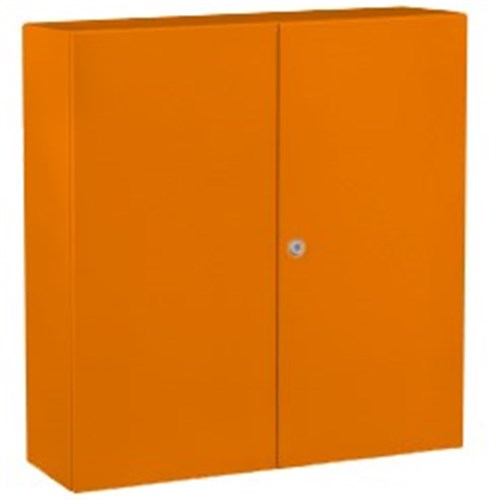

IDE MSB101030DDA Mild Steel Enclosure Cold Rolled Steel 1000W 1000H 300D RAL2008 Orange IP55

Product Code: MSB101030DDA

  • IP55 rated for dust and water protection
  • Made from durable cold rolled steel
  • Supports up to 1000 VAC and 1500 VDC
  • Double reversible door for flexible access
  • Compliant with IEC & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Enclosure
Brand
IDE
Series
MSB

Electrical

Rated Operational Voltage (Ue)
1000V AC / 1500V DC

Mechanical

Colour
RAL 2008 orange
Material
Cold-rolled steel EN10130+A3
No. of Locks
3P

Dimensions & Physical Data

Depth
300mm
Height
1000mm
Weight
65.7kg
Width
1000mm

Environmental

Operating Temperature
-25°C / +60°C
IP Rating
IP55

Safety, Standards & Compliance

Standards and Approvals
Compliant with the Low Voltage Directive 2014/35/EU. Standards: UNE-EN 62208 and UNE-EN 61439-1 (as applicable). UL 508A and Gost-R certificates. Bureau Veritas according to UNE-EN 62208 standards. certificate for boats.

Documents

IPD Product Catalogue V17
