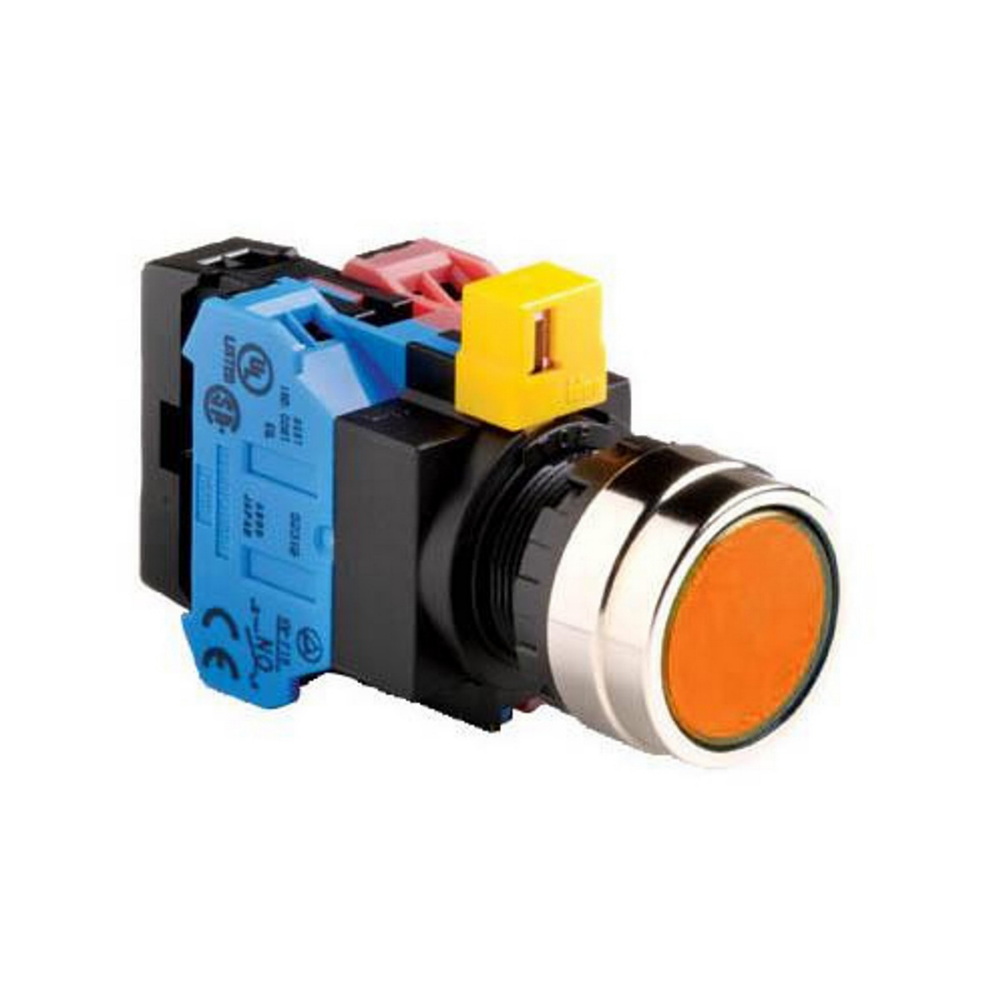

IDECHW4L-M1F11QD-A24 Illuminated Pushbutton 22mm Flush Momentary Amber 24VAC/DC 1NO+1NC

Product Code: HW4L-M1F11QD-A24

  • Locking lever removable contact blocks
  • Finger-safe IP20 contacts
  • Tamperproof construction
  • All E-stops meet EN60947-5-5, and are compliant with SEMI S2 standards
  • Worldwide approvals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton
Brand IDEC
Actuator Type Flush
Bezel Material Metal
Bezel Shape Round
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Circuit Full Voltage
Insulation Resistance 100 MOhm
Lamp Colour Amber
Lamp Type LED
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Series HW
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW4L-M1F11QD-A24 is a 22mm illuminated pushbutton featuring a durable metal bezel and a flush, momentary amber operator. Designed for clear signalling with its 24V LED illumination, this pushbutton provides one Normally Open (NO) and one Normally Closed (NC) contact configuration for versatile control in various applications. Its extended design ensures easy operation and quick identification in control panels.
