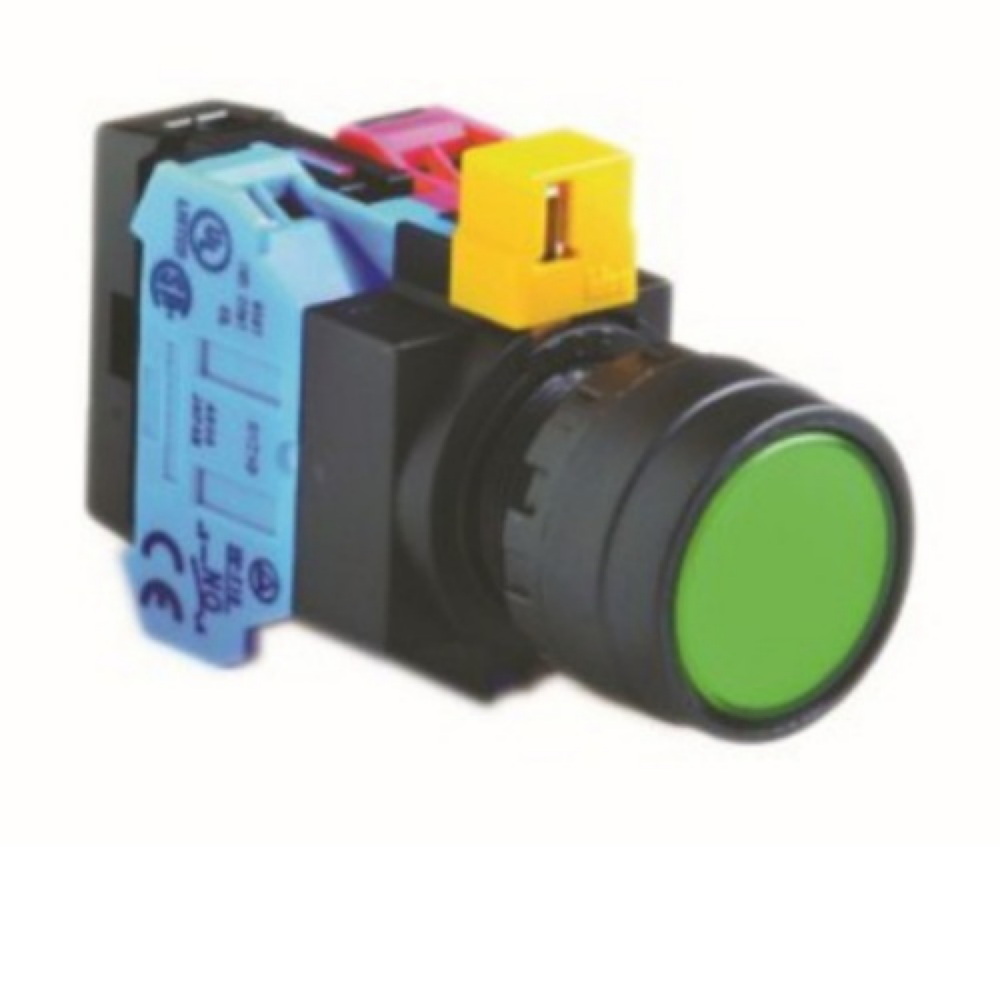

IDECHW1L-M2F11G-K Illuminated Pushbutton Kit 22mm Extended Momentary Green 1NO+1NC

Product Code: HW1L-M2F11G-K

  • Locking lever removable contact blocks
  • Finger-safe IP20 contacts
  • Tamperproof construction
  • All E-stops meet EN60947-5-5, and are compliant with SEMI S2 standards
  • Worldwide approvals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand IDEC
Actuator Type Extended
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Green
Lamp Type Without Lamp
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Series HW
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW1L-M2F11G-K is an illuminated pushbutton with a distinctive green, extended head for easy visibility and operation. This momentary switch includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact, allowing for flexible control in various circuits. Designed for full voltage applications, it ensures reliable activation. The unit's tamperproof construction enhances security, making it a robust choice for industrial environments.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
