IDECHW1L-M1F10M4W-K Illuminated Pushbutton Kit Transformer 22mm Flush Momentary White 240/6VAC/DC 1NO

Product Code: HW1L-M1F10M4W-K

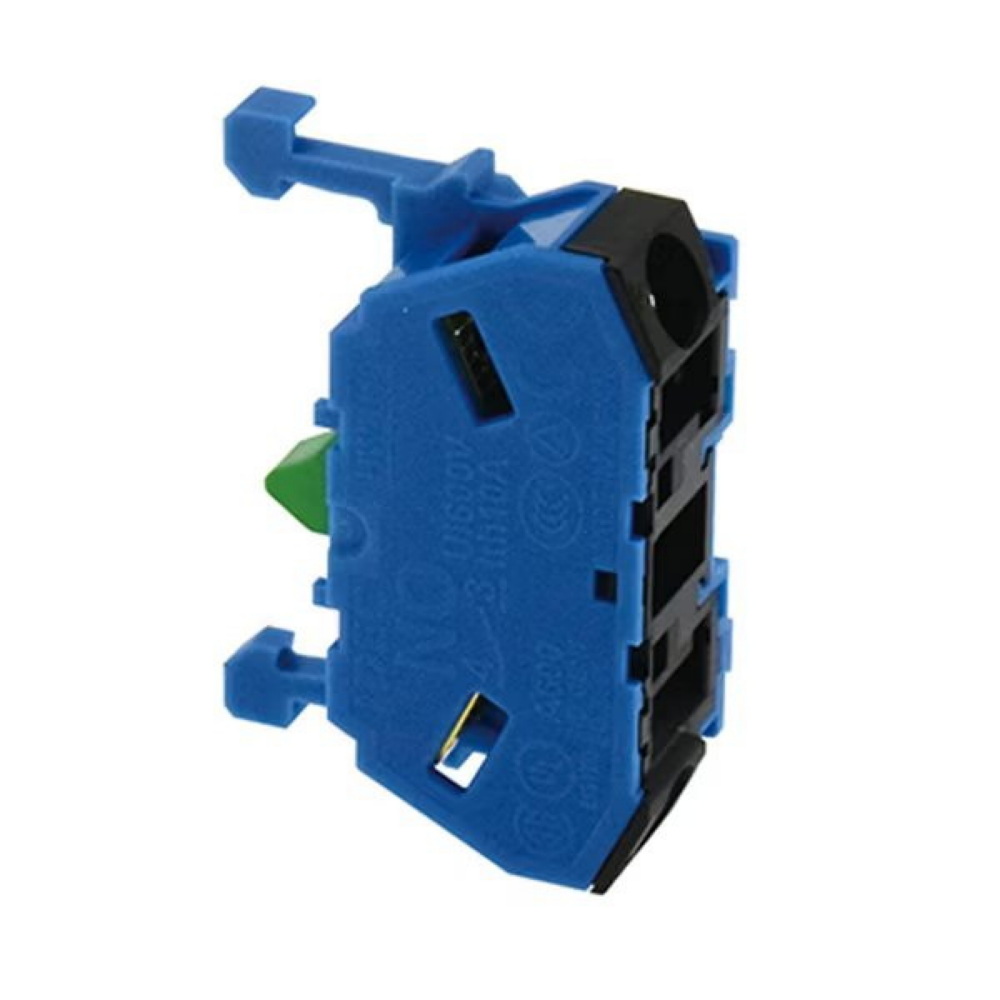

  • Locking lever removable contact blocks
  • Finger-safe IP20 contacts
  • Tamperproof construction
  • All E-stops meet EN60947-5-5, and are compliant with SEMI S2 standards
  • Worldwide approvals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton Kit
Brand IDEC
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated

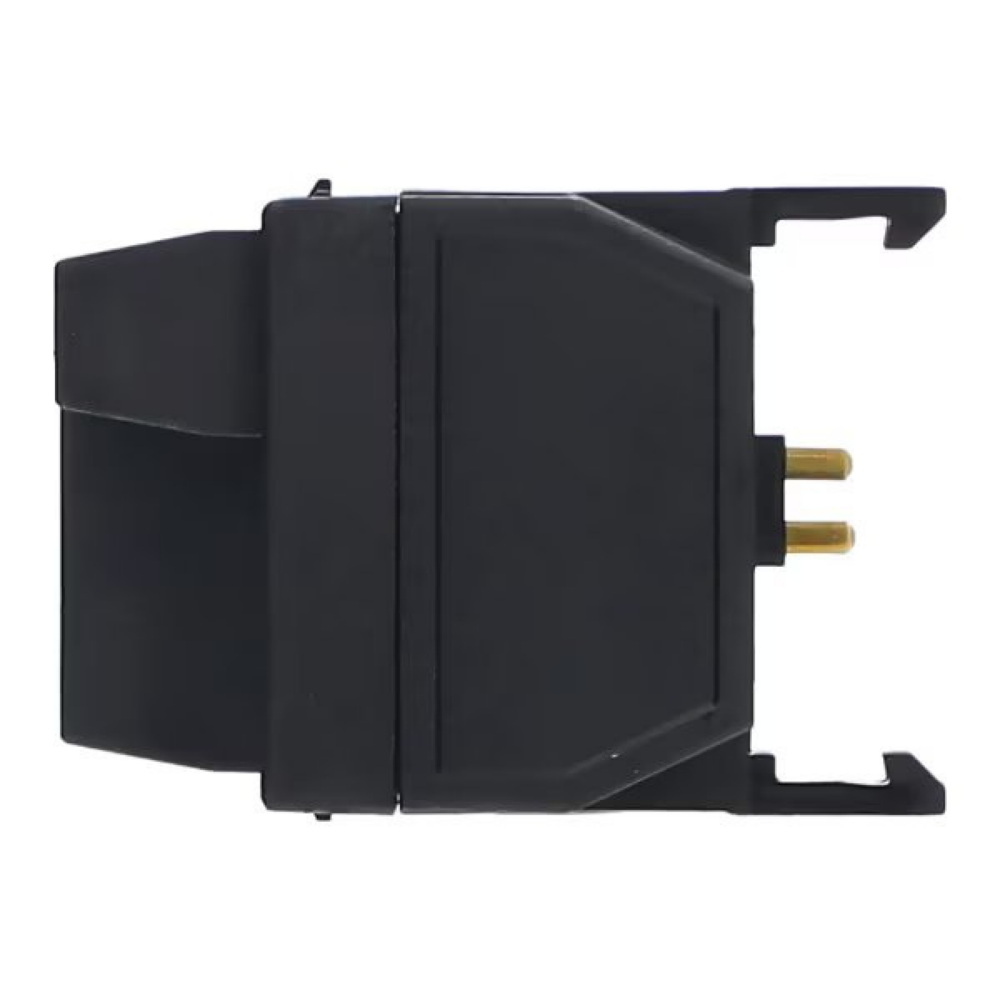

Illumination Circuit Transformer
Insulation Resistance 100 MOhm
Lamp Colour White
Lamp Type Without Lamp
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 240/6 VAC/DC
Series HW
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified, TUV approved
Terminal Type Screw

Description

The IDEC HW1L-M1F10M4W-K is a momentary, illuminated pushbutton with a white flush design and transformer type 240/6V. It features one normally open (NO) contact and finger-safe (IP20) screw terminals that accept ring, fork, ferrule terminals, and bare wires. This emergency stop pushbutton is compliant with EN418 for positive action, ensuring reliable performance. Additionally, it is UL listed, CSA certified, TUV approved, and CE marked for quality assurance in various international markets.
