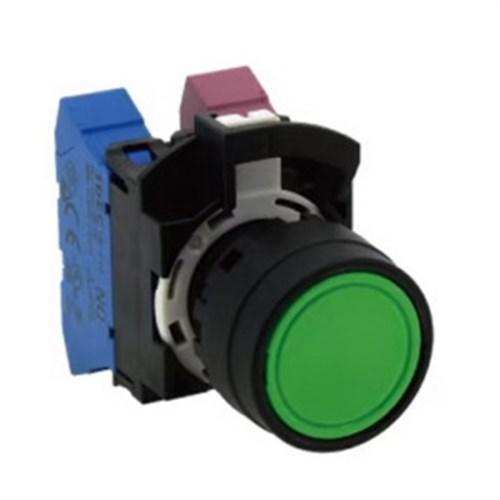

IDECHW1L-M1F10-M4-G Illuminated Pushbutton Transformer 22mm Flush Momentary Green 240/6VAC/DC 1NO

Product Code: HW1L-M1F10-M4-G

  • Locking lever removable contact blocks
  • Finger-safe IP20 contacts
  • Tamperproof construction
  • All E-stops meet EN60947-5-5, and are compliant with SEMI S2 standards
  • Worldwide approvals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton
Brand IDEC
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Contact Configuration 1NO
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Circuit Transformer
Insulation Resistance 100 MOhm
Lamp Colour Green
Lamp Type Incandescent
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 240/6 VAC/DC
Series HW
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW1L-M1F10-M4-G is an illuminated green pushbutton with a flush design for a sleek appearance. It features momentary action for quick and responsive operation. The pushbutton includes an incandescent lamp and is designed for easy wiring with its screw-terminal connection. This component is suitable for signalling and control applications in various industrial settings.
