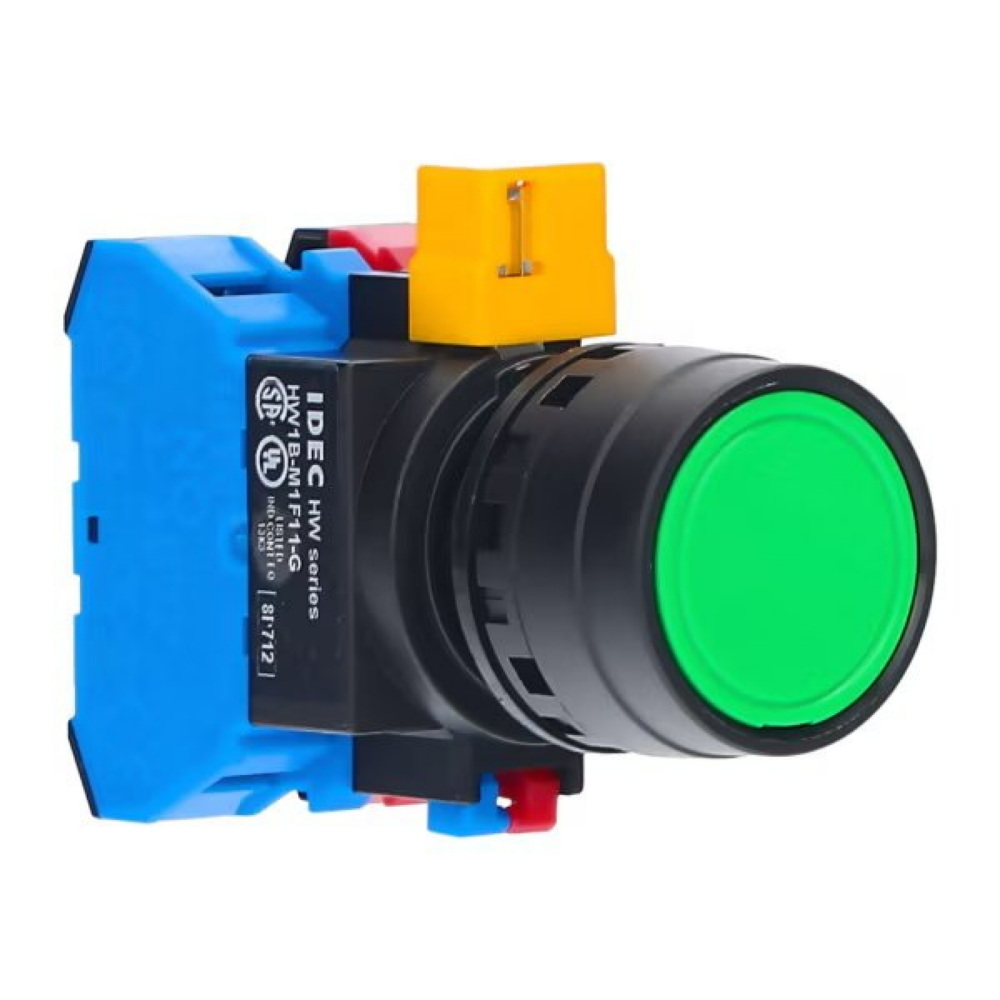

IDECHW1B-M1F11-G Non-Illuminated Pushbutton 22mm Flush Momentary Green 1NO+1NC

Product Code: HW1B-M1F11-G

  • Push-in terminal connection reduces wiring time
  • Safety enhanced with IP20 finger-safe protection
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pushbutton
Brand IDEC
Actuator Type Flush
Bezel Colour Black
Bezel Material Plastic
Bezel Shape Round
Button Colour Green
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Insulation Resistance 100 MOhm
Operating Humidity 45-85%
Operational Temperature -25 to 60 deg C
Rated Continuous Current 10 A
Rated Insulation Voltage 600 V
Series HW
Terminal Type Screw

Description

The IDEC HW1B-M1F11-G is a green, flush pushbutton designed for momentary operation. It features a durable plastic bezel and is suitable for 22mm mounting applications. This pushbutton offers a straightforward interface for control systems in various industrial settings.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
