Product Code: 942 999 835

Specifications

General

Product Type

Managed Ethernet Switch

Brand

Hirschmann

Series

MTS2700

Electrical

Electrical Connection

2 × fixed redundant PSUs(1x460W fixed PSU for PoE and system power,1x30W fixed PSU for system power only)

Rated Power

29W

Rated Voltage (Ur)

100-240VAC 50-60Hz, redundancy PSU supported

Mechanical

Mounting

Rack mount

Port Configuration

24 × FE/GE POE/POE+, 4 × 1/10G SFP+ slots, 1 × RJ45 Console port, 1 × USB 2.0, 1 × Reset Button

Dimensions & Physical Data

Depth 320mm	Height 44.2mm	Weight 6.4kg
Width 442mm

Environmental

Storage Temperature

-40°C to 70°C

Operating Temperature

-10°C to 55°C

Communication & Control

Traffic Management

Based on port/MAC address/IP address/IP priority/DSCP priority/TCP or UDP port number/ protocol type etc.

Network Management

Console port; HTTP; Telnet; SSH management; SNMP v1/v2/v3; RMON 1/2/3/9; SYSLOG; DDMI

Safety, Standards & Compliance

Standards and Approvals

CE/FCC Compliant EAL 2+ RoHS ((EU) 2015/863) and RoHS (GB/T26572-2011) compliant CCC China Network Access

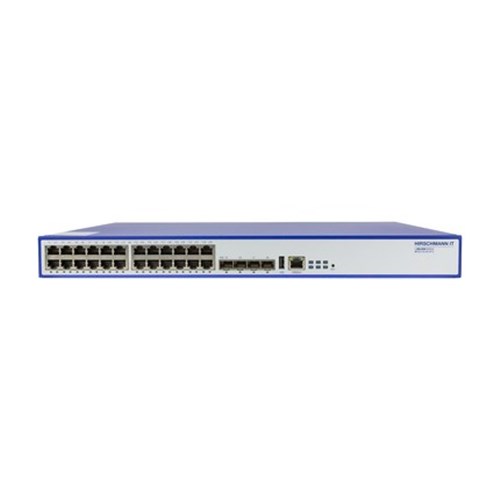

HIRSCHMANN RACKMOUNT MANAGED SWITCH 942 999 835

Product Code: 942 999 835
