Product Code: 942 170-999-092

Specifications

General

Product Type

Managed Ethernet Switch

Brand

Hirschmann

Electrical

Rated Voltage (Ur)

2 x 12 VDC ... 24 VDC

Mechanical

Material

PC-ABS

Mounting

DIN Rail

Port Configuration

24 Ports in total: 20x 10/100BASE TX / RJ45; 4x 100/1000Mbit/s fiber ; 1. Uplink: 2 x SFP Slot (100/1000 Mbit/s) ; 2. Uplink: 2 x SFP Slot (100/1000 Mbit/s)

Dimensions & Physical Data

Depth 115mm	Height 138mm	Weight 1.05kg
Width 109mm

Environmental

Storage Temperature

-40°C to 70°C

Operating Temperature

0°C to 60°C

IP Rating

IP30

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131, EN 62368-1 IEC 61850 IEC 62443-4-2 Security Level 2

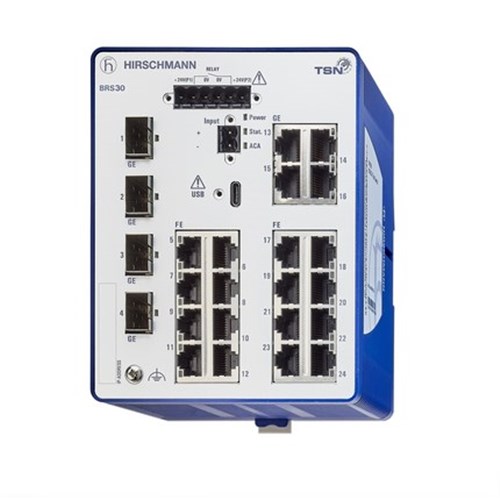

HIRSCHMANN MANAGED SWITCH BRS30-2004OOOO STCV99HHSES 942 170-999-092

Product Code: 942 170-999-092
