Specifications

Product Type

Managed Ethernet Switch

Brand

Hirschmann

Series

LRS

Input Voltage

48 VDC (PoE) / 54 VDC (PoE+)

Mounting

DIN rail

Depth 118mm	Height 135mm	Weight 0.72kg
Width 68mm

Operating Temperature

-40°C to 60°C

IP Rating

IP30

Connectors/Input/Output 7x FE TX, 3x FE/GE SFP, 1x FE/GE Combo, PoE on up to 8 ports	Total Ports 11	Traffic Management Static Unicast/Multicast Address Entries, VLAN (802.1Q), Independent VLAN Learning, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Jumbo Frames, IGMP Snooping/Querier (v1/v2/v3), Unknown Multicast Filtering, IGMP Group Filtering per Port, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection
Network Management LLDP (802.1AB), LLDP-MED, Password change on first login, SSHv2, HTTP, HTTPS, Responsive GUI, SNMP v1/v2/v3, Traps, Telnet, TFTP, Dual Software Image Support

Standards and Approvals

CE, FCC, EN 61131 cUL 61010-1

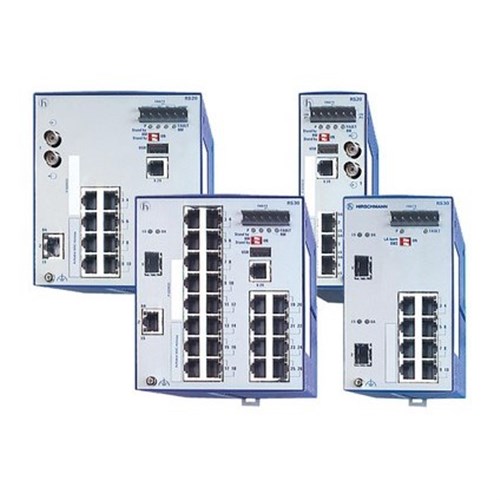

HIRSCHMANN LITE MANAGED SWITCH RS32-7TX/3SFP/1C-HPHIRSCHMANN 943 328-006
