Product Code: 942 133-999-006

Specifications

General

Product Type

Managed IP67 Switch

Brand

Hirschmann

Electrical

Rated Voltage (Ur)

2 x 24 VDC (16.8 .. 30 VDC)

Mechanical

Mounting

Wall mounting

Port Configuration

10 ports in total; ; TP-cable, auto-crossing, auto-negotiation, auto-polarity. first pair of uplink ports not equipped ; second pair of uplink ports 10/100/1000BASE-TX, M12 "X"-coded, 8-pins ; Local ports 10/100BASE-TX M12 "D"-coded, 4-pin

Dimensions & Physical Data

Depth 95mm	Height 186mm	Weight 3.5kg
Width 261mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 60°C

IP Rating

IP65 / IP67

Safety, Standards & Compliance

Standards and Approvals

CE; FCC; EN 61131 EN 60950-1 IEC 62443-4-2 Security Level 1

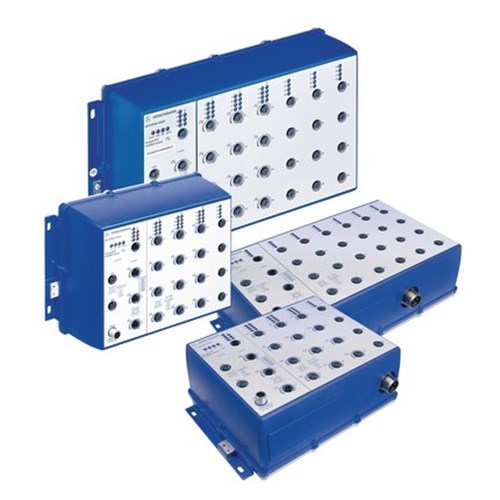

HIRSCHMANN IP67 MANAGED SWITCH 942 133-999-006

Product Code: 942 133-999-006
