Product Code: 942 133-999-002

Specifications

General

Product Type

Industrial Ethernet Switch

Brand

Hirschmann

Electrical

Rated Voltage (Ur)

2 x 24/36/48 VDC (16.8 .. 60 VDC)

Mechanical

Mounting

Wall mounting

Port Configuration

20 ports in total; ; TP-cable, auto-crossing, auto-negotiation, auto-polarity. Uplink ports 10/100BASE-TX M12 "D"-coded, 4-pins with bypass relays ; Local ports 10/100BASE-TX M12 "D"-coded, 4-pin ; 12 x PoE(+) Ports (phantom power)

Dimensions & Physical Data

Depth 95mm	Height 186mm	Weight 3.5kg
Width 261mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP65 / IP67

Safety, Standards & Compliance

Standards and Approvals

CE; FCC; EN 61131 EN 60950-1 IEC 62443-4-2 Security Level 1

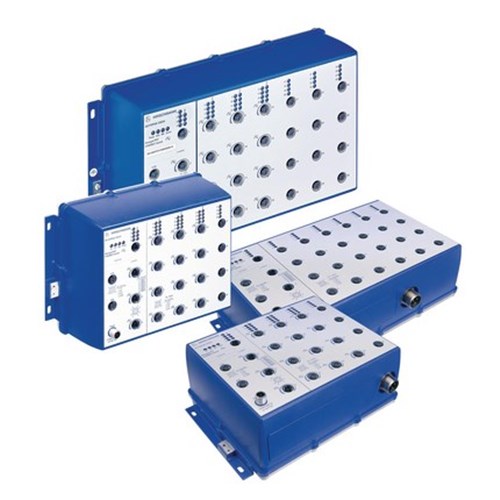

HIRSCHMANN IP67 MANAGED SWITCH 942 133-999-002

Product Code: 942 133-999-002
