Specifications

Product Type

Embedded Ethernet Switch

Brand

Hirschmann

Series

EES20

Input Voltage

3.3V DC +/- 5%

Depth 60mm	Height 13mm	Weight 0.035kg
Width 88mm

Operating Temperature

-40°C to 85°C

Connectors/Input/Output 6 x Fast Ethernet ports, configurable as 100BaseTX or 100BaseFX, RX+/RX-and TX+/TX- signals per por	Total Ports 6	Traffic Management Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, VLAN (802.1Q), VLAN Unaware Mode, IGMP Snooping/Querier per VLAN (v1/v2/v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)
Network Management TFTP, SFTP, SCP, LLDP (802.1AB), SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

Development Software

HiOS 07.1.08

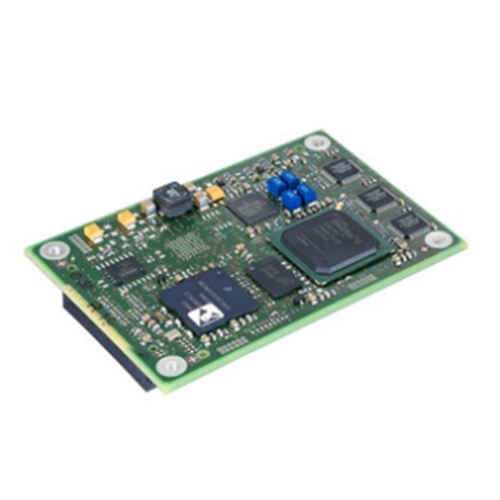

HIRSCHMANN EMBEDDED ETHERNET SWITCH 942 050-001
