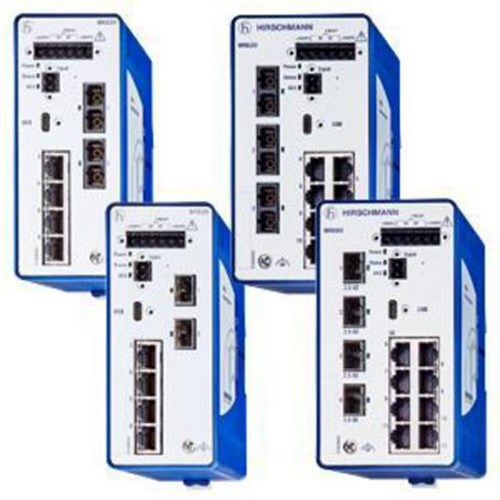

HIRSCHMANN BOBCAT MANAGED SWITCH 942 170-108

Managed Switch

Hirschmann

BOBCAT (BRS30)

1 x plug-in terminal block, 2-pin

2 x 12 VDC ... 24 VDC

9W

12

HIPER-Ring (Ring Switch), Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, HIPER-Ring over Link Aggregation, MRP over Link Aggregation, MSTP (802.1Q), Sub Ring Manager

Auto Disable, AutoConfiguration Adapter ACA21/22 (USB), Automatic Configuration Undo (roll-back), Backup config on a remote server when saving, BOOTP/DHCP Client with Auto-Configuration, Clear config but keep IP settings, CLI script handling over ENVM at boot, CLI Scripting, Command Line Interface (CLI), Configuration Fingerprint, Context-sensitive Help, DHCP Relay with Option 82, DHCP Server: per Port, DHCP Server: Pools per VLAN, Full-featured MIB Support, HiDiscovery, HTML5 based Management, USB-C Management support, XML-based Configuration File, Interface Shutdown via Tracking

1 x plug-in terminal block, 6-pin (power supply/signaling contact)

1 x plug-in terminal block, 6-pin (power supply/signaling contact)

RJ45, SFP slots, USB-C, plug-in terminal blocks

Twisted pair (TP); single mode / multimode fiber via SFP modules

Twisted pair (TP); single mode / multimode fiber via SFP modules

Configuration Check Dialog, Copper Cable Test, Device Status Indication, Duplex Mismatch Detection, LEDs, Link Flap Detection, Link Speed and Duplex Monitoring, MAC Notification, Management Address Conflict Detection, Overload Detection, Persistent Logging on ACA, Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, Port Mirroring N:2, Port Monitoring with Auto-Disable, RMON (1,2,3,9), Self-Tests on Cold Start, SFP Management, Signal Contact, Switch Dump, Syslog, System Information, TCPDump, Email Notification, Loop Protection, RSPAN, SFLOW

PC-ABS

EtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), Modbus TCP, PROFINET Protocol

BRS30-8TX/4SFP-2A (BRS30-0804OOOO-STCY99HHSEAXX.X)

DIN Rail

10/100BASE TX / RJ45; SFP slot (100/1000 Mbit/s)

VLAN (802.1Q), Voice VLAN, Private VLAN, GARP VLAN Registration Protocol (GVRP), Multiple VLAN Registration Protocol (MVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Forward unknown multicast to query ports per vlan

115mm

138mm

0.57kg

73mm

Twisted pair (TP): 0 - 100m; SM/LH/MM fiber: see SFP fiber modules

Twisted pair (TP): 0 - 100 m; SM/LH/MM fiber: see SFP fiber modules

-40°C to 70°C

0°C to 60°C

IP30

USB-C (Local Management and Device Replacement)

12

Basis Standard: CE, FCC, EN 61131, EN 62368-1; Safety of industrial control equipment: cUL61010; Industrial Security: IEC 62443-4-2 Security Level 2

Access to Management restricted by VLAN, Appropriate Use Banner, Audit Trail, Basic ACL, CLI Logging, Configurable Number of Login Attempts, Configurable Password Policy, Denial-of-Service Prevention, Device Security Indication, DoS Prevention Drop Counter, Guest/unauthenticated VLAN, HTTPS Certificate Management, Ingress VLAN-based ACL, Integrated Authentication Server (IAS), Local User Management, MAC-based Port Security, Multiple Privilege Levels, Password change on first login, Port-based Access Control with 802.1X, RADIUS Client, RADIUS VLAN Assignment, Remote Authentication via RADIUS, Restricted Management Access, Secure Boot, Signed Firmware Images, SNMP Logging, User Account Locking, VLAN-based ACL, ACL Flow-based Limiting, DHCP Snooping, Dynamic ARP Inspection, Format options for MAC authentication bypass, Ingress IPv4-based ACL, Ingress MAC-based ACL, IP Source Guard, LDAP, MAC Authentication Bypass, MACSec Support, Multi-Client Authentication per Port, TACACS+ Client, Time-based ACL
