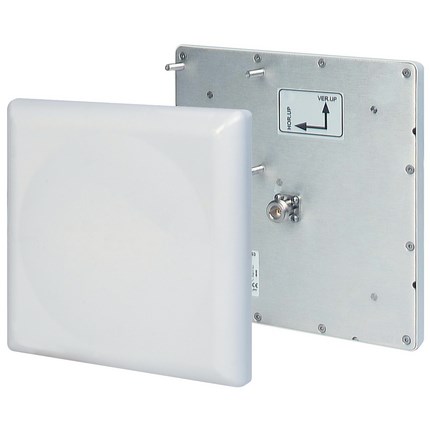

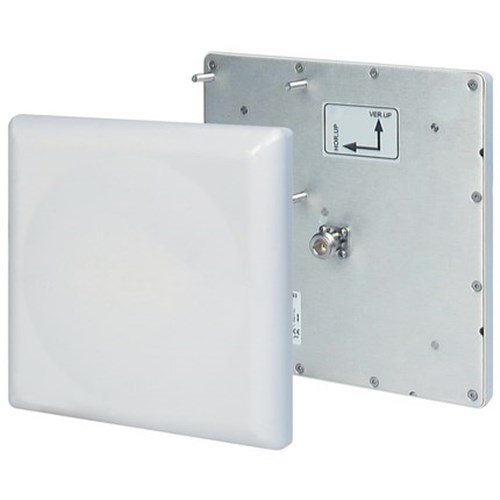

Hirschmann 943 981-006 Wireless LAN Antenna Wall Mast Mount

Product Code: 943 981-006

  • Suitable for wall or mast mounting
  • Compact width of 190 mm
  • IP65-rated for dust and water protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Wireless LAN Antenna
Brand
Hirschmann

Electrical

Electrical Connection
1x N plug (female)
Rated Power
6 W (CW)

Mechanical

Material
plastic
Shape
Panel

Dimensions & Physical Data

Depth
31 mm
Height
190 mm
Weight
700 g
Width
190 mm

Environmental

Operating Temperature
– 45 °C to +70 °C
IP Rating
IP65 / IP67

Communication & Control

Frequency Band
5150 MHz - 5250 MHz 5250 MHz - 5350 MHz 5350 MHz - 5725 MHz 5725 MHz - 5875 MHz
Signal Gain
18 dBi 19 dBi 18.5 dBi 18 dBi
