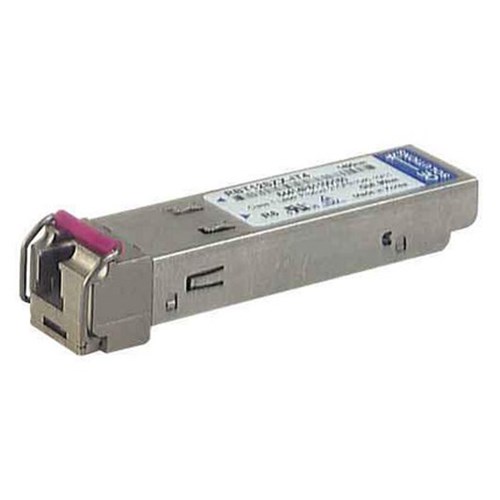

Hirschmann 943 975-101 SFP Fiber Optic Bi-Directional Ethernet Transceiver Type B

Product Code: 943 975-101

  • Compact 13.4 mm width for space efficiency
  • Operates in wide temp range: -40 to 85°C
  • IP20 rated for basic protection
  • Fits SFP slot for easy installation
  • Low power consumption at 1 W
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceiver
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP+ slot
Port Configuration
1 x 1000 Mbit/s with LC connector

Dimensions & Physical Data

Depth
50mm
Height
18mm
Weight
0.07kg
Width
20mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950

Documents

IPD Product Catalogue V17
