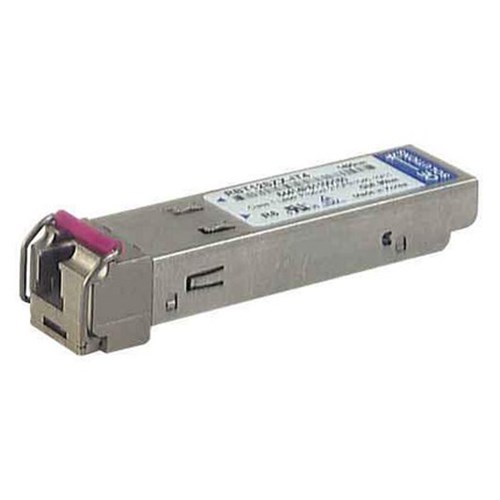

Hirschmann 943 974-002 SFP Fiber Optic Bi-Directional Ethernet Transceiver Type B

Product Code: 943 974-002

  • Compact design with 13.4 mm width
  • IP20 protection for indoor use
  • Operates in -40 to 85°C range
  • Fits SFP slot for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceiver
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 1000 Mbit/s with LC connector

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.04kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
