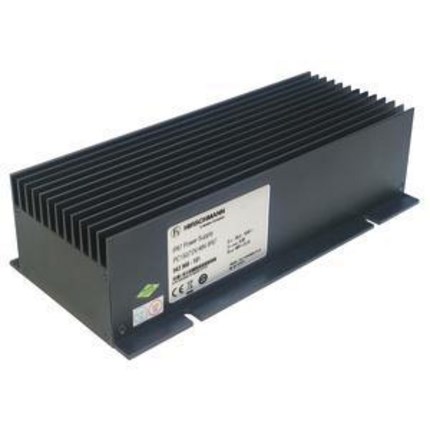

Hirschmann 943 968-001 DC Power Supply 16.8-64VDC Wall Mount

Product Code: 943 968-001

  • Converts 16.8-64 VDC efficiently
  • Wall mount for easy installation
  • IP67 rating ensures durability
  • Operates in -40 to 70°C range
  • Handles humidity from 5% to 95%
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC Power Supply
Brand
Hirschmann

Electrical

Electrical Connection
Voltage input 1.1 m cable Voltage output 0.5 m cable with M12-connector A-Coded
Rated Voltage (Ur)
Input: 16.8 VDC to 64 VDC Output: 48 V DC

Dimensions & Physical Data

Depth
115 mm
Height
65 mm
Weight
3.1 kg
Width
240 mm

Environmental

Storage Temperature
-40-+85 °C
Operating Temperature
-40-+70 °C
IP Rating
IP67

Safety, Standards & Compliance

Standards and Approvals
CE, EN50155, EN61131-2 cUL 60950-1 (pending) EN 50121-4, EN 50155 EN 50121-4, EN 50155, EN 45545-2 HL2

Documents

IPD Product Catalogue V17
