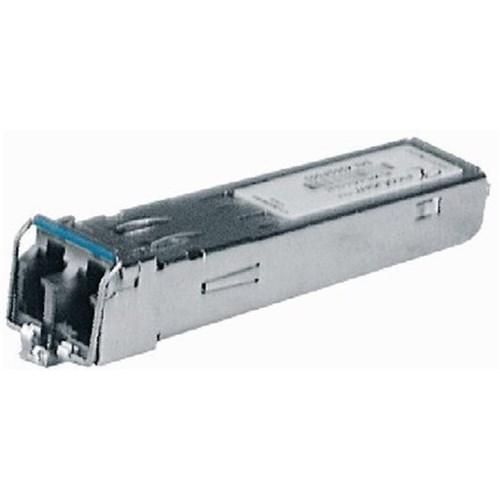

Hirschmann 943 947-001 SFP Fiber Optic Singlemode Fast Ethernet Transceiver

Product Code: 943 947-001

  • Compact design, 13.4 mm width
  • Operates in -40 to 85°C range
  • Fits standard SFP slots
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceiver
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 100 BASE-FX with LC connector

Dimensions & Physical Data

Depth
50mm
Height
18mm
Weight
0.04kg
Width
20mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
