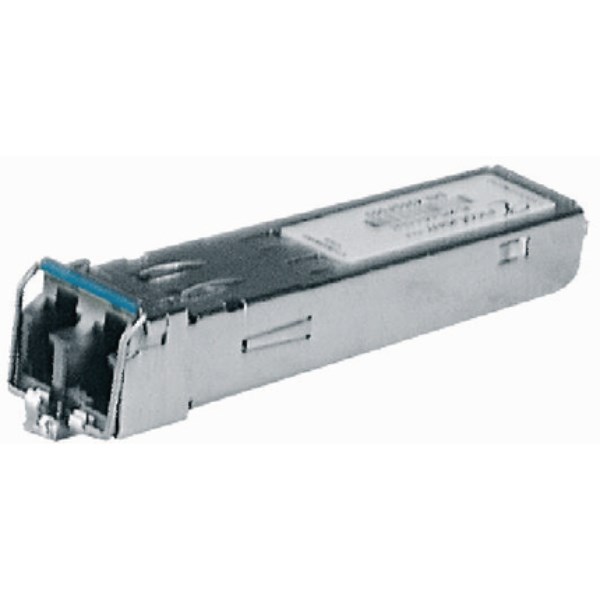

Hirschmann 943 946-001 SFP Fiber Optic Singlemode Fast Ethernet Transceiver 1 x 100 Base-FX W/LC connector -Port

Product Code: 943 946-001

  • Single mode fibre, 9/125 um
  • Supports up to 25 km cable length
  • Operates in -40 to 85°C range
  • Fits SFP slot, IP20 protection
  • Includes one 100 Base-FX LC port
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
Hirschmann

Electrical

Power Consumption
1W
Connector Type
LC
Interface Type
SFP
Data Rate
100 Mbit/s

Mechanical

Mounting
SFP slot

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.03kg
Width
13.4mm
Network Cable Length
- 0 - 25 km (Link Budget at 1310 nm = 0 - 13 dB; A = 0.4 dB/km, D = 3.5 ps/(nm*km)) (Single mode fiber (SM) 9/125µm)

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN 60950
