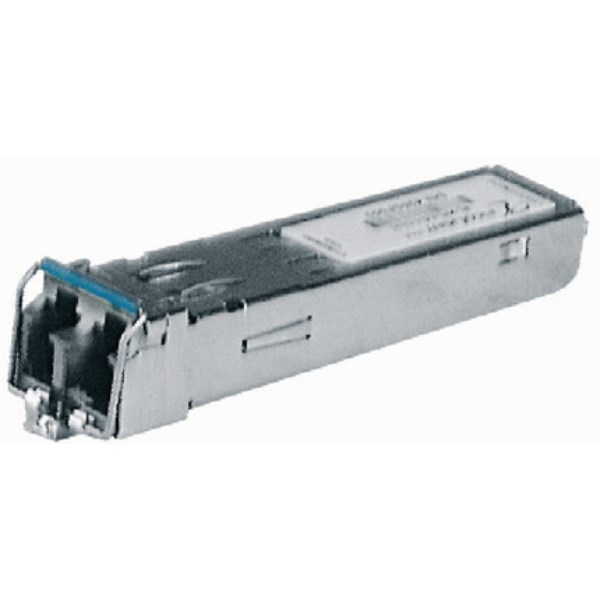

Hirschmann 943 945-001 SFP Fiber Optic Multimode Fast Ethernet Transceiver 1 x 100 Base-FX W/LC connector -Port

Product Code: 943 945-001

  • Compact design with 13.4 mm width
  • SFP slot mounting for easy installation
  • Supports multimode fibre, 50/125 & 62.5/125 um
  • Operates in extreme temps: -40 to 85°C
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceiver
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 100 BASE-FX with LC connector

Dimensions & Physical Data

Depth
50mm
Height
18mm
Weight
0.04kg
Width
20mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
-40°C to 85°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950

Documents

IPD Product Catalogue V17
