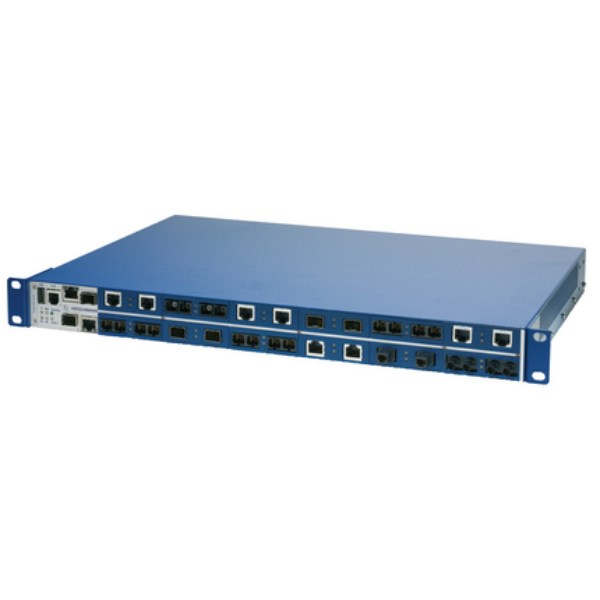

Hirschmann 943 940-999-001 Rack Mount Managed Ethernet Switch 19 in Control Cabinet Mount 110-230VAC

Managed Ethernet Switch

Hirschmann

MAR1030

Power supply 1: power supply 3-pin plug-in terminal block, signal contact 2-pin plug-in terminal block ; Power supply 2: power supply 3-pin plug-in terminal block, signal contact 2-pin plug-in terminal block

max. 38.5W

Power supply 1: 110/250 VDC, 110/230 VAC ; Power supply 2: 110/250 VDC, 110/230 VAC

19" control cabinet

In total 2 Gigabit and 20 Fast Ethernet ports \\\ GE 1 and 2: Combo (10/100/1000BASE-TX, RJ45 plus related 100/1000BASE-FX, SFP slot) \\\ FE 1 and 2: 10/100BASE-TX, RJ45 \\\ FE 3 and 4: 10/100BASE-TX, RJ45 \\\ FE 5 and 6: 10/100BASE-TX, RJ45 \\\ FE 7 and 8: 10/100BASE-TX, RJ45 \\\ FE 9 and 10: 10/100BASE-TX, RJ45 \\\ FE 11 and 12: 10/100BASE-TX, RJ45 \\\ FE 13 and 14: 10/100BASE-TX, RJ45 \\\ FE 15 and 16: 10/100BASE-TX, RJ45 \\\ FE 17 and 18: 10/100BASE-TX, RJ45 \\\ FE 19 and 20: 10/100BASE-TX, RJ45

310mm

44mm

4kg

448mm

-40°C to 85°C

0°C to 60°C

IP30

1 x USB to connect auto-configuration adapter ACA21-USB

Disable Learning (hub functionality), Double VLAN Tagging (QinQ), Egress Broadcast Limiter per Port, Fast Aging, Flow Control (802.3X), GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier (v1/v2/v3), Independent VLAN Learning, Jumbo Frames, QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, VLAN (802.1Q), Voice VLAN

Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet

CE, FCC, EN 61131 cUL 508 ISA 12.12.01 Class 1 Div. 2 DNV IEC 61850-3, IEEE 1613 EN 50121-4 NEMA TS2
