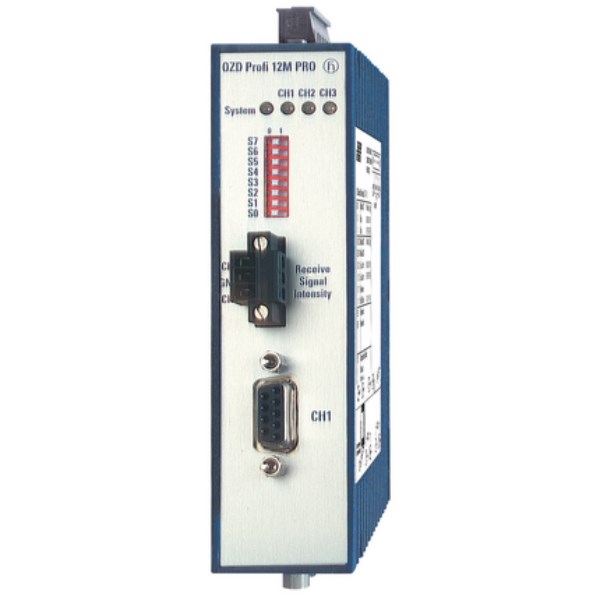

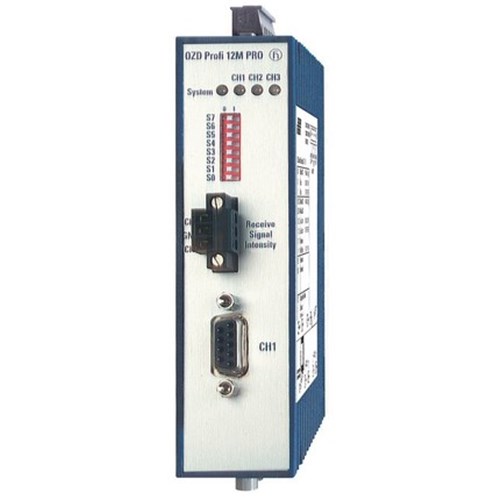

Hirschmann 943 906-221 Electrical/Optical Interface Converter For: Profibus-Field Bus Networks

Product Code: 943 906-221

  • Converts signals for Profibus networks
  • Supports single mode & multimode fibre
  • DIN rail mounting for easy installation
  • Operates in 0 to 60°C; IP20 protection
  • ATEX and IECEx certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface converter
Brand
Hirschmann
Series
OZD

Electrical

Rated Power
4.8 W
Rated Voltage
-7 V ... +12 V 18 ... 32 VDC, typ. 24 VDC

Mechanical

Mounting Type
DIN rail

Dimensions & Physical Data

Depth
119 mm
Height
163 mm
Weight
200 g
Width
35 mm

Environmental

Storage Temperature
-40-+70 °C
Operating Temperature
0-+60 °C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1

Safety, Standards & Compliance

Standards and Approvals
EU Conformity, AUS Conformity Australia cUL508 ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
