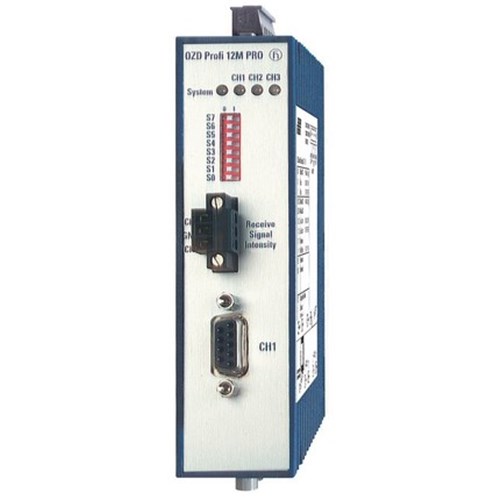

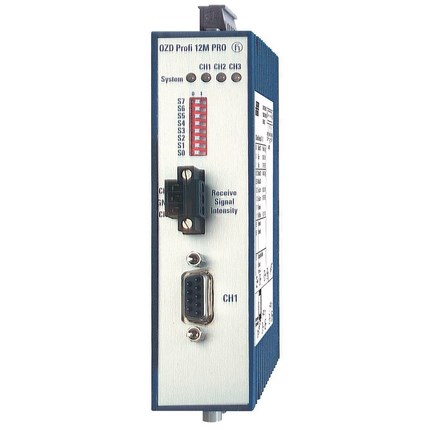

Hirschmann 943 905-221 Electrical/Optical Interface Converter For: Profibus-Field Bus Networks

Product Code: 943 905-221

  • Converts for Profibus-Field Bus Networks
  • Operates at 18-32 VDC, 4.8 W
  • DIN Rail mounting for easy install
  • IP40 protection against solid objects
  • Temp range from 0 to 60°C operational
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Converter
Brand
Hirschmann
Series
OZD

Electrical

Rated Power
4.8W
Rated Voltage (Ur)
-7V ... +12V 18 ... 32 VDC, typ. 24 VDC

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
119mm
Height
156mm
Weight
0.2kg
Width
35mm

Environmental

Storage Temperature
-40°C to 70°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Connectors/Input/Output
1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1

Safety, Standards & Compliance

Standards and Approvals
EU Conformity, AUS Conformity Australia cUL508 ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2
