Specifications

Product Type

Ethernet Transceiver

Brand

HIRSCHMANN

Power Consumption 1 W	Connector Type LC	Network Size (Length of Cable) - 0 - 20 km (Link Budget at 1310 nm = 0 - 10,5 dB; A = 0,4 dB/km; D = 3,5 ps/(nmkm)) (Single mode fiber (SM) 9/125µm)- 0 - 550 m (Link Budget at 1310 nm = 0 - 10,5 dB; A = 1 dB/km; BLP = 800 MHzkm) With f/o adapter in line with IEEE 802.3-2000 clause 38 (single-mode fiber offset-launchmode conditioning patch cord) (Multimode fiber (MM) 50/125µm)- 0 - 550 m (Link Budget at 1310 nm = 0 - 10,5 dB; A = 1 dB/km; BLP = 500 MHz*km) With f/o adapter in line with IEEE 802.3-2000 clause 38 (single-mode fiber offset-launchmode conditioning patch cord) (Multimode fiber (MM)62.5/125 µm)
Interface Type SFP	Data Rate 1000 Mbit/s

Mounting Type

SFP slot

Depth 56.5 mm	Height 8.5 mm	Weight 34 g
Width 13.4 mm

Storage Temperature

-40 to +85 ºC

Operating Temperature

-40 to +85 ºC

IP Rating

IP20

Transmission Media

Fiber

Standards and Approvals

EN60950

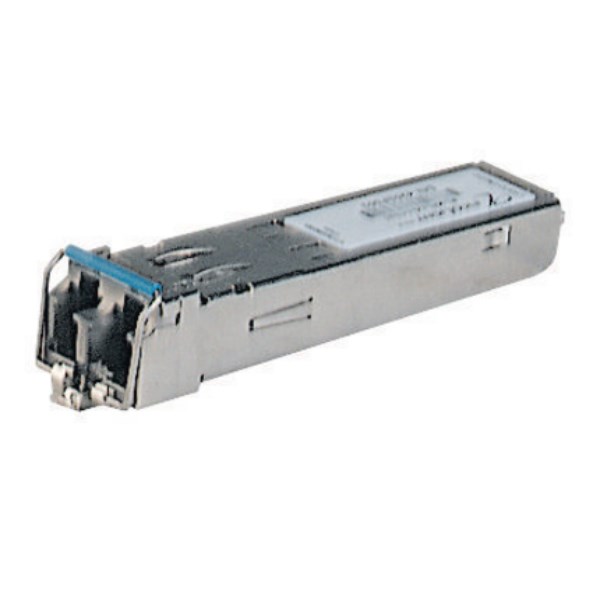

Hirschmann 943 897-001 SFP Fiber Optic Singlemode Ethernet Transceiver 1 x 1000 Base-LX W/LC connector -Port
