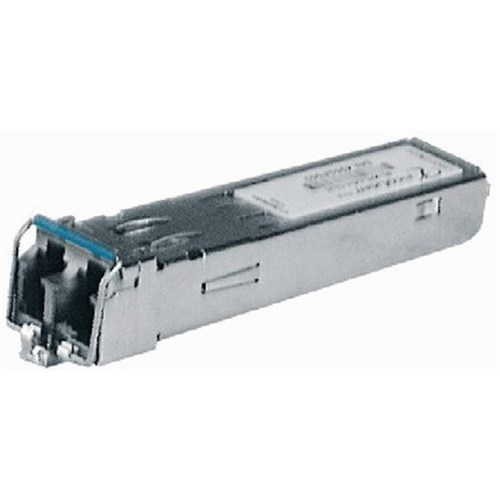

Hirschmann 943 868-001 SFP Fiber Optic Ethernet Transceiver

Product Code: 943 868-001

  • Compact 13.4 mm width design
  • Operates in 0 to 60°C environment
  • IP20 rated for secure installations
  • Fits standard SFP slot for easy mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceivers
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 100 Mbit/s with LC connector

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.03kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950

Documents

IPD Product Catalogue V17
