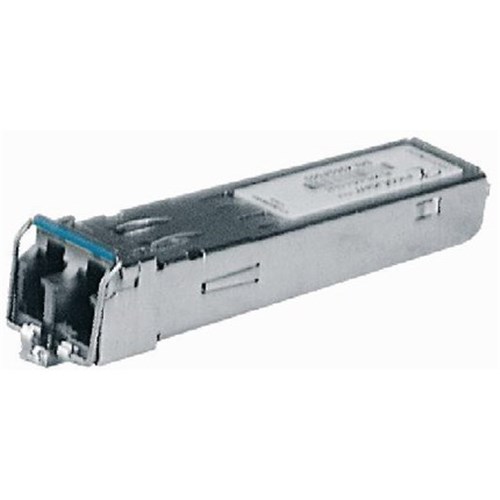

Hirschmann 943 866-001 SFP Fiber Optic Singlemode Ethernet Transceiver

Product Code: 943 866-001

  • Compact 13.4 mm width for tight spaces
  • IP20 protection against solid objects
  • Operates in temperatures 0 to 60°C
  • Broad humidity range: 5-95%
  • Fits standard SFP slots
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceivers
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 100 Mbit/s with LC connector

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.034kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950
