Product Code: 943 276-999-001

Wall mountable for easy installation
Robust IP65/IP67 protection rating
Operates in -10 to 60°C temperature range
Durable metal housing for longevity
Ethernet M12 X Coded connectivity

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

OpenBAT-R / -F

Electrical

Connectors 2x N-Type Female Socket, requires N-Type Male Connectors on the Antenna 1x 10/100/1000Mbit/s	Communication Protocols IEEE 802.11a/b/g/n/ac WLAN interface as per IEEE 802.11ac , 802.11F (IAPP) as Access Point, 802.11r as Access Point	Rated Power Maximum power consumption : 9W
Rated Voltage (Ur) PoE PD 802.3af Class 3 , 24 VDC (18-32 VDC)

Mechanical

Material

metal

Mounting

Wall mounting

Port Configuration

1x Ethernet M12 X-Coded , 1x Power M12 A-Coded

Dimensions & Physical Data

Depth 50mm	Height 150mm	Weight 0.934kg
Width 172mm

Environmental

Storage Temperature

-40°C to 70°C

Operating Temperature

-40°C to 70°C

IP Rating

IP65/67

Communication & Control

Radio Frequency Supports 2.4 GHz or 5 GHz: 2412-2472MHz or 5180-5825MHz (regulatory restrictions apply depending on the country of operation)	Modulation OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM; Note: MCS numbering changed with 11ac. Supported rates with up to 2 streams: MCS0-MCS9. Channel widths: 20MHz, 40MHz and 80MHz	Radio Features 2x2 MIMO (configurable). Up to 2 streams (configurable). Spatial Multiplexing, Cyclic-Delay Diversity (CDD), Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
Encryption Open, WEP, 802.11i - WPA/WPA2 - Personal (PSK), 802.11i - WPA/WPA2 - Enterprise (802.1X: TLS, TTLS/PAP, TTLS/CHAP, TTLS/MSCHAP, TTLS/MSCHAPV2, TTLS/MD5, PEAP/MSCHAPV2)

Safety, Standards & Compliance

Standards and Approvals

FCC, IC IEC/EN 62368-1:2014 + AC:2015 (formerly EN 60950-1), EN 62311:2008 ETSI EN 300 328:2019 V2.2.2 (2.4GHz), ETSI EN 301 893:2017 V2.1.1 (5GHz), ETSI EN 302 502:2017 V2.1.1 (5.8GHz)

Accessories & Additional Information

Development Software

Industrial HiVision , LANConfig , optional BAT Controller (WLC for AccessPoint mode)

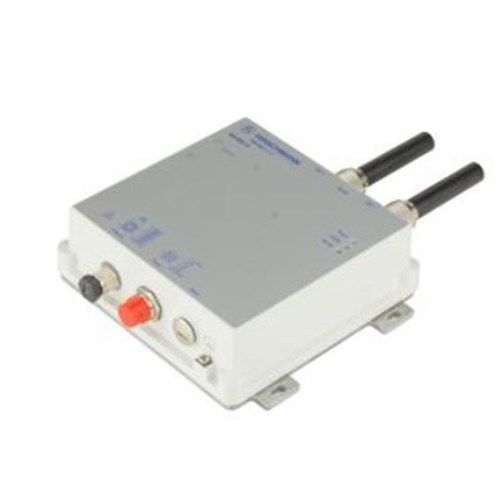

Hirschmann 943 276-999-001 Wireless Access Point 1 x Ethernet M12 X-coded (10/100/1000 BASE-TX) 24VDC
