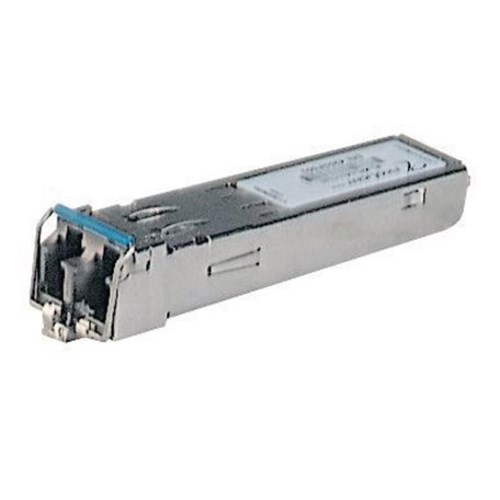

Hirschmann 943 042-001 SFP Fiber Optic Ethernet Transceiver 1 x 1000 Mbps W/LC connector -Port

Product Code: 943 042-001

  • Compact 13.4 mm width
  • IP20-rated for secure installations
  • Operates in 0 to 60°C environments
  • Supports single-mode fibre, 9/125 um
  • LC connector with up to 80 km range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Transceivers
Brand
Hirschmann
Series
SFP

Electrical

Rated Power
1W
Rated Voltage (Ur)
power supply via the switch

Mechanical

Diagnostic Functions
Optical input and output power, transceiver temperature
Mounting
SFP slot
Port Configuration
1 x 1000 Mbit/s with LC connector

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.03kg
Width
13.4mm

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60950

Documents

IPD Product Catalogue V17
