Products

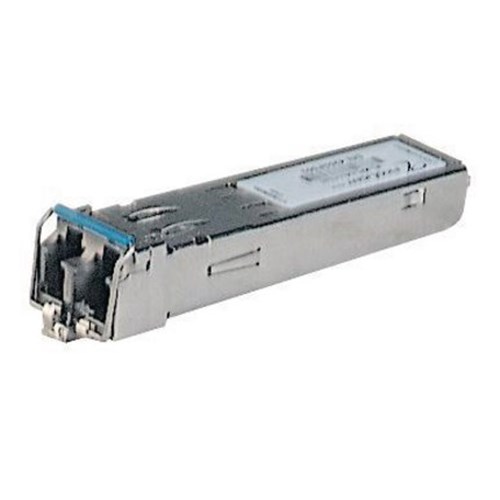

Hirschmann 943 014-001 SFP Fiber Optic Multimode Ethernet Transceiver

Product Code: 943 014-001

  • Compact 13.4 mm width for space efficiency
  • Fits standard SFP slot for versatile use
  • Operates in 0 to 60°C temperature range
  • IP20 protection against solid objects
  • Meets IEC standards for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Transceiver
Brand
Hirschmann

Electrical

Power Consumption
1W
Connector Type
LC
Interface Type
SFP
Data Rate
1000 Mbit/s

Mechanical

Mounting
SFP slot

Dimensions & Physical Data

Depth
56.5mm
Height
8.5mm
Weight
0.03kg
Width
13.4mm
Network Cable Length
- 0 - 550 m (Link Budget at 850 nm = 0 - 7,5 dB; A = 3,0 dB/km; BLP = 400 MHz*km)(Multimode fiber (MM) 50/125µm)- 0 - 275 m (Link Budget at 850 nm = 0 - 7,5 dB; A = 3,2 dB/km; BLP = 200 MHz*km) (Multimode fiber (MM)62.5/125 µm)

Environmental

Storage Temperature
-40°C to 85°C
Operating Temperature
0°C to 60°C
IP Rating
IP20

Communication & Control

Transmission Media
Fiber

Safety, Standards & Compliance

Standards and Approvals
EN 60950

Documents

IPD Product Catalogue V17
