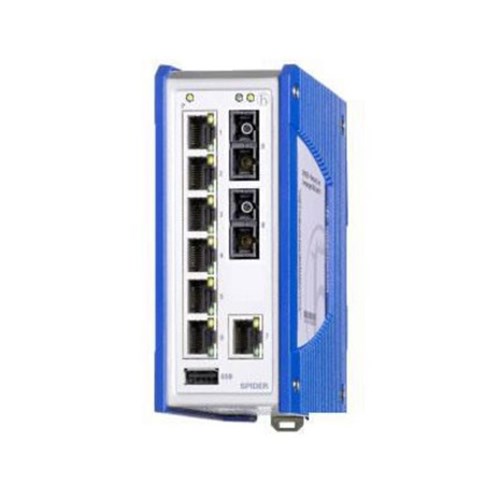

Hirschmann 942 335-031 Ethernet Unmanaged Switch 10/100BaseTX TP Cable RJ45

Product Code: 942 335-031

  • Unmanaged switch with 9 ports
  • Supports 12/24 VDC input voltage
  • Compact DIN rail mounting
  • IP40 rated for protection
  • Auto-negotiation & auto-polarity features
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Hirschmann
Series
SPIDER III

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC), redundant

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
135mm
Weight
0.51kg
Width
56mm

Environmental

Operating Temperature
-40°C to 65°C
IP Rating
IP40

Communication & Control

Connectors/Input/Output
7 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 2 x 100BASE-FX, SM cable, SC sockets
Total Ports
9

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201 ISA 12.12.01 Class 1 Div. 2; ATEX Zone 2 DNVGL EN 50121-4 E1
