Products

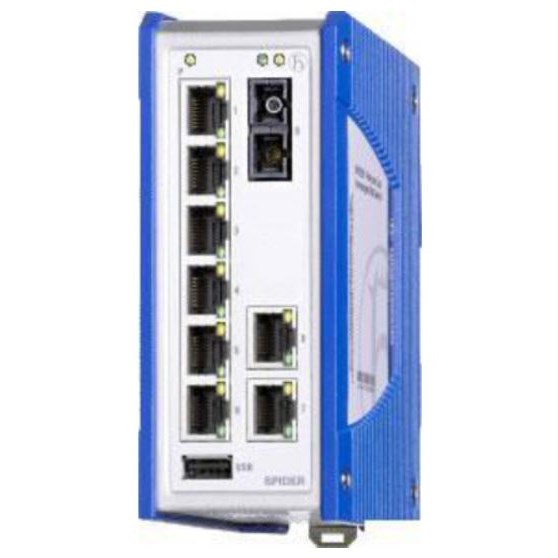

Hirschmann 942 335-028 Ethernet Unmanaged Switch 10/100BaseTX TP Cable RJ45

Product Code: 942 335-028

  • Unmanaged switch with 8 RJ-45 ports
  • Supports 10/100BaseTX and 100BASE-FX
  • Compact DIN rail mounting design
  • Operates on 12/24 VDC power supply
  • IP40 protection for reliable use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Hirschmann
Series
SPIDER III

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC), redundant

Mechanical

Housing Material
Metal Housing
Mounting
DIN rail

Dimensions & Physical Data

Depth
117mm
Height
135mm
Weight
0.51kg
Width
56mm

Environmental

Operating Temperature
-40°C to 65°C
IP Rating
IP40

Communication & Control

Connectors/Input/Output
8 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity , 1 x 100BASE-FX, MM cable, SC sockets
Total Ports
9

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201 ISA 12.12.01 Class 1 Div. 2; ATEX Zone 2 DNVGL EN 50121-4 E1
