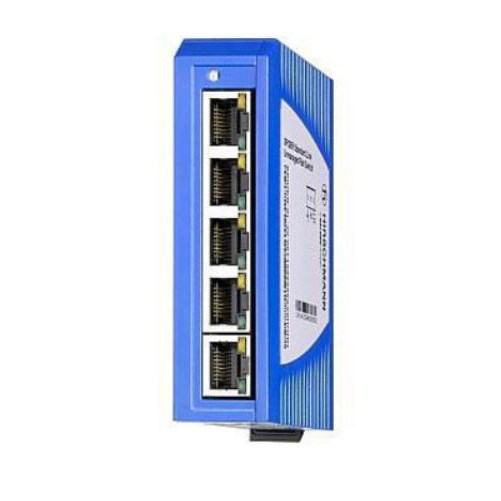

Hirschmann 942 335-003 Ethernet Unmanaged Switch 10/100/1000BASE-T TP Cable RJ45

Product Code: 942 335-003

  • Unmanaged switch with 5 RJ-45 ports
  • Supports 10/100/1000BASE-T connections
  • Compact DIN rail mounting
  • IP30 protection rating
  • Operates on 12/24 VDC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Unmanaged Ethernet Switch
Brand
Hirschmann
Series
SPIDER III

Electrical

Input Voltage
12/24V DC (9.6 - 32V DC)

Mechanical

Housing Material
Plastic
Mounting
DIN rail

Dimensions & Physical Data

Depth
79mm
Height
102mm
Weight
0.17kg
Width
26mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
5 x 10/100/1000BASE-T, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
Total Ports
5

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1/61010-2-201

Documents

IPD Product Catalogue V17
