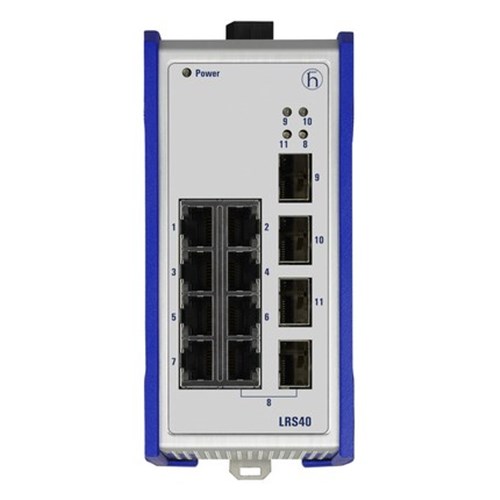

Hirschmann 942 328-003 Ethernet Switch 24VDC

Product Code: 942 328-003

  • Managed type for efficient control
  • Compact DIN rail mounting
  • IP30 protection rating
  • Wide temp range: -40 to 60°C
  • CE, FCC, EN61131 approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ethernet Switch
Brand
Hirschmann
Series
LRS

Electrical

Input Voltage
24V DC

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
118mm
Height
135mm
Weight
0.68kg
Width
68mm

Environmental

Operating Temperature
-40°C to 60°C
IP Rating
IP30

Communication & Control

Connectors/Input/Output
7x FE/GE TX, 3x FE/GE SFP, 1x FE/GE Combo
Total Ports
11
Traffic Management
Static Unicast/Multicast Address Entries, VLAN (802.1Q), Independent VLAN Learning, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, CoS Queue Management, Queue-Shaping / Max. Queue Bandwidth, Jumbo Frames, IGMP Snooping/Querier (v1/v2/v3), Unknown Multicast Filtering, IGMP Group Filtering per Port, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection
Network Management
LLDP (802.1AB), LLDP-MED, Password change on first login, SSHv2, HTTP, HTTPS, Responsive GUI, SNMP v1/v2/v3, Traps, Telnet, TFTP, Dual Software Image Support

Safety, Standards & Compliance

Standards and Approvals
CE, FCC, EN 61131 cUL 61010-1

Documents

IPD Product Catalogue V17
