Product Code: 942 300-999-006

Industrial router with 15 W power rating
Dual voltage: 24-48 VDC for flexibility
Compact DIN rail mounting design
Operates in extreme temps: -40 to 70°C
Equipped with 5 GbE RJ45 & 2 SFP ports

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE40

Electrical

Rated Power

max. 25W

Rated Voltage (Ur)

Dual 20 ~ 54V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting

DIN rail

Port Configuration

7 ports in total; 5 x Gigabit Ethernet RJ45 LAN +, 2 x Gigabit Ethernet SFP WAN

Dimensions & Physical Data

Depth 135.8mm	Height 187.2mm	Weight 1.96kg
Width 70mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

0°C to 60°C

IP Rating

IP40

Communication & Control

USB Port

2 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC

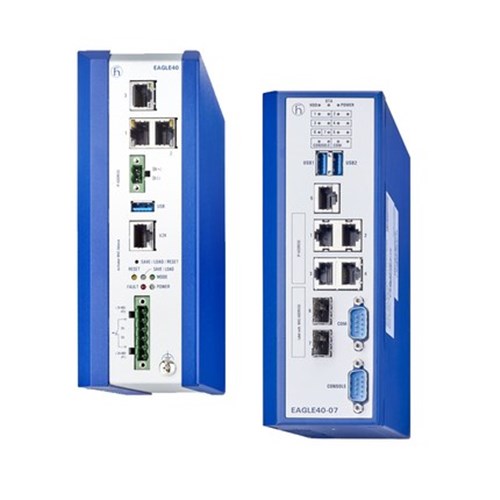

Hirschmann 942 300-999-006 FIREWALL & SECURITY ROUTER 5xGbE RJ45 + 2xGbE SFP (2) SFP (5) RJ45 Twisted Pair

Product Code: 942 300-999-006
