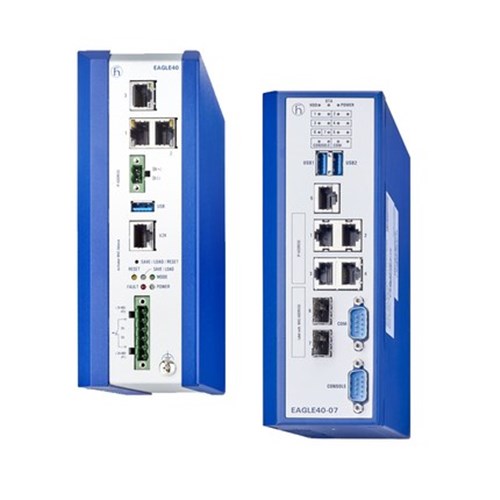

Product Code: 942 300-999-005

Industrial router for robust network solutions
Operates in extreme temps: -40 to 70°C
Dual power input: 24-48 VDC
Compact DIN rail mounting design
IP40 rated sheet metal housing

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE40

Electrical

Communication Protocols

HiSecOS 05.2.00

Rated Power

max. 15W

Rated Voltage (Ur)

Dual 20 ~ 54V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting

DIN rail

Port Configuration

3 ports in total; 2 x Gigabit Ethernet RJ45 LAN +, 1 x Gigabit Ethernet SFP WAN

Dimensions & Physical Data

Depth 135.8mm	Height 187.2mm	Weight 1.96kg
Width 70mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP20

Communication & Control

USB Port

1 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC, EN 61131

Accessories & Additional Information

Development Software

HiSecOS 05.2.00

Hirschmann 942 300-999-005 FIREWALL & SECURITY ROUTER 2xGbE RJ45 LAN + 1xGbE SFP WAN (1) SFP (2) RJ45 Twisted Pair
