Product Code: 942 300-999-002

Dual 24-48 VDC power inputs
DIN rail mounting for easy installation
Durable sheet metal construction
Operates in -40 to 70°C temp. range
IP40 protection rating

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE40

Electrical

Rated Power

max. 25W

Rated Voltage (Ur)

Dual 20 ~ 54V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting

DIN rail

Port Configuration

7 ports in total; 5 x Gigabit Ethernet RJ45 LAN +, 2 x Gigabit Ethernet SFP WAN

Dimensions & Physical Data

Depth 65mm	Height 186mm	Weight 1.56kg
Width 160mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP40

Communication & Control

USB Port

2 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC

Accessories & Additional Information

Development Software

Unified Protection Suit

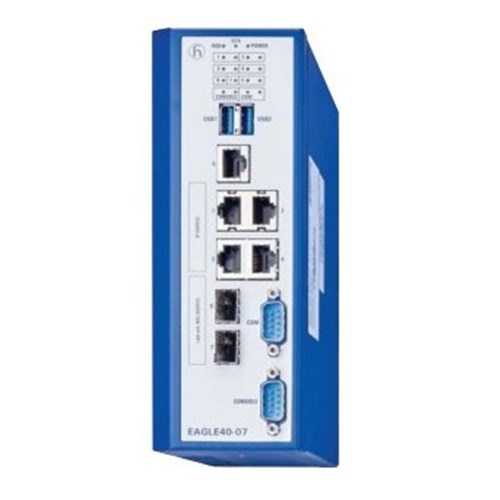

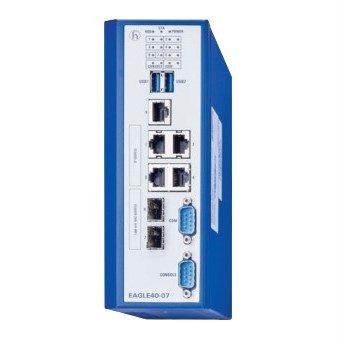

Hirschmann 942 300-999-002 FIREWALL & SECURITY ROUTER 5xGbE RJ45 + 2xGbE SFP
