Product Code: 942 300-102

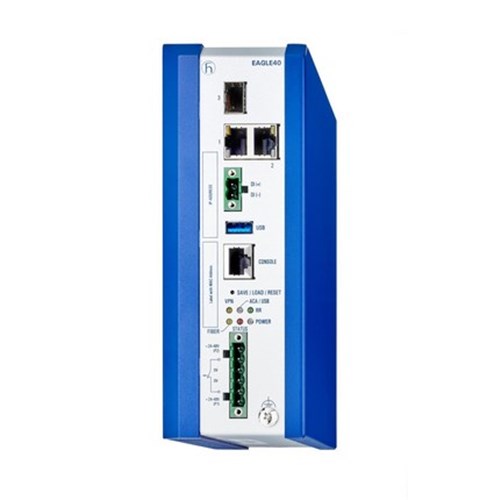

Industrial router with 5 TX & 2 SFP ports
Operates in -40 to 70°C temperature range
DIN rail mounting for easy installation
IP20 protection ensures durability
CE and FCC approved for compliance

Specifications

General

Product Type

Firewall

Brand

Hirschmann

Series

EAGLE40

Electrical

Rated Power

max. 25W

Rated Voltage (Ur)

Dual 20 ~ 54V DC

Mechanical

Material

Rugged high-strength sheet metal

Mounting

DIN rail

Port Configuration

7 ports in total; 5 x Gigabit Ethernet RJ45 LAN +, 2 x Gigabit Ethernet SFP WAN

Dimensions & Physical Data

Depth 65mm	Height 186mm	Weight 1.56kg
Width 160mm

Environmental

Storage Temperature

-40°C to 85°C

Operating Temperature

-40°C to 70°C

IP Rating

IP40

Communication & Control

USB Port

2 x USB 3.0 socket to connect an approved USB storage device

Encryption

TPM 2.0 (Trusted Platform Module)*

Safety, Standards & Compliance

Standards and Approvals

CE, FCC UL 62368-1

Accessories & Additional Information

Development Software

SW Version 04.3.

Hirschmann 942 300-102 Industrial Firewall With Stateful Packet Inspection (5) TX (2) SFP 24/36/48VDC
